Step-by-Step Guide to Testing RF Amplifier Gain

Testing RF amplifier gain is one of those skills that separates hobbyists from professionals in the RF world. Whether you’re validating a new amplifier design, troubleshooting a malfunctioning unit, or verifying specs before integration into a larger system, knowing how to measure gain accurately is essential.

The good news? You don’t need a $20,000 network analyzer to get professional results. With a TPI signal generator that has scalar analyzer capabilities and the right approach, you can measure RF amplifier gain with excellent accuracy. Our guide walks you through the entire process, from setting up your equipment to interpreting your results.

What You will Need for RF Amplifier Testing

Before we jump into the measurement process, let’s chat about equipment. Here’s what you need to test RF amplifier gain properly:

Essential Equipment:
  • Signal generator with calibrated output (35 MHz to 4.4 GHz coverage is ideal for most amplifiers)
  • RF detector or a signal generator with built-in scalar analyzer capability
  • Quality RF cables (typically 50-ohm impedance)
  • Power supply for the amplifier under test
  • 50-ohm termination loads
  • Attenuators (optional but recommended for high-gain amplifiers)
Nice-to-Have Items:
  • Directional coupler for monitoring power levels
  • Variable attenuator for fine-tuning input levels
  • Spectrum analyzer for validating output signal quality

The key piece here is having a signal generator with known output power accuracy. If your generator’s output is off by 2 dB, your gain measurements will be off by 2 dB. Most quality signal generators specify output accuracy within ±1 dB, which is sufficient for most applications.

Understanding RF Amplifier Gain Basics

Let’s make sure we’re on the same page about what we’re measuring. Amplifier gain is simply the ratio of output power to input power, typically expressed in decibels (dB).

The gain formula is straightforward:

Gain (dB) = Output Power (dBm) – Input Power (dBm)

For example, if you feed -10 dBm into an amplifier and measure +10 dBm at the output, you’ve got 20 dB of gain. Simple math, but the devil’s in the details when it comes to getting accurate measurements.

Key concepts you need to understand:

Linear vs. Saturated Operation – Amplifiers behave differently depending on input power. In the linear region, gain remains constant. Push too much power in, and the amplifier saturates, compressing the output and reducing effective gain.

Get to know your amplifier – Before any measurements are made, you need to know everything you can about the Device Under Test (DUT). Download the latest data sheet for your DUT. In our example we will measure a Mini-Circuits Low Noise Amplifier (LNA) ZFL-1000LN+. ZFL-1000LN+.pdf shows a flat gain of 20 dB +/- 0.5 dB from 100 MHz to 1 GHz. 1 dB compression at +3 dBm. This amplifier is best known for its low noise figure and would best be used in a receivers “Front End”. The amplifier requires 15 Vdc at 60 ma.

Frequency-Dependent Gain – Most amplifiers don’t provide flat gain across their entire frequency range. You’ll typically see peak gain at center frequency with rolloff at the band edges. We will sweep this amplifier from 400 MHz to 900 MHz and check gain flatness at 6 dB below 1 dB compression.

Compression Point – The 1 -dB compression point (P1 dB) is where output power is 1 dB below what you’d expect from linear operation. This tells you the maximum usable power level. In our example since 1 dB compression is at +3 dBm output, and since the gain is 20 dB we can safely set the Signal generator to -20 dBm RF output (which should give us 0 dBm into the detector input. To check the compression point you can step/increase the RF output in 1 dB steps.

Setting Up Your RF Amplifier Test

Proper technique will make all the difference. A sloppy setup leads to questionable results, while a methodical approach gives you confidence in your measurements.

Step 1: Prepare Your Amplifier

Start by connecting your amplifier to its power supply. Most RF amplifiers need DC power, and it’s important that you use the correct voltage and current rating specified by the manufacturer.

Important safety note: RF amplifiers can generate significant heat, especially at higher power levels. Make sure you have adequate cooling, either passive heatsinking or active cooling, depending on the amplifier’s requirements.

Before connecting any RF equipment, verify that your power supply is stable and at the correct voltage. I’ve seen more than one amplifier destroyed by overvoltage during testing.

Step 2: Verify Your Cable/connector Losses

Here’s a step that many people skip, but it’s crucial for accuracy. Before connecting the amplifier, measure the loss in your cables and connections. You can “Zero” out losses using your detector sweep function. For example, I will add a 6 dB attenuator at the RF output of the signal generator and then add the RF cable from the attenuator to the detector input. Then I will set up a sweep from 400 MHz to 900 MHz and set the RF Power to -14 dBm (-14 dBm should equate to -20 dBm plus cable loss). As you can see, the cable loss is minimal and our output power is exactly -20 dBm (just as expected) If your cable loss was 1 dB (-21 dBm) you could increase the RF output to -13 dBm and you will see -20 dBm to the detector input.

Note any discrepancy – this is your cable and connection loss. You’ll need to account for this in your final calculations.

Step 3: Connect Your Signal Generator to the RF input of the amplifier

Connect your signal generator output to the amplifier input using a quality RF cable. Here’s what matters:

  • Use the shortest practical cable length to minimize loss
  • Ensure connectors are clean and properly torqued
  • Verify the cable impedance matches your system (typically 50 ohms)
  • Check that the cable is rated for your frequency range



Notice the offset tab with -6 dB (attn) and the RF Power = -26 dBm

RF output across the band is approximately -3.5 dBm = Gain of 23  dB

Start with your signal generator at a low power level, something like -26 dBm or even lower. You can always increase power but starting too high risks damaging the amplifier or getting saturated measurements from the beginning.

Step 4: Configure the Output Measurement

Now connect the amplifier output to your RF detector or scalar analyzer input. If you’re using a signal generator with built-in detector capability, this is straightforward – just connect the amplifier output to the detector input port.

For high-gain amplifiers (>30 dB): You may need to add attenuation between the amplifier output and your measurement device to avoid overloading the detector. A 10 dB or 20 dB attenuator is often useful here.

Always terminate unused ports with proper 50-ohm loads. Unterminated ports can cause reflections that skew your measurements.

Measuring RF Amplifier Gain: The Process

Now we get to the actual measurement. This is where using a signal generator with scalar analyzer functionality really shines, as it can automate much of this process.

Baseline Measurement

With the amplifier connected and powered up, start with a low input power level. Set your signal generator to output something conservative like -20 dBm.

Turn on the RF output and observe the detector reading. You should see output power that’s higher than your input power.

Record three values:
  1. Generator output power (input to amplifier)
  2. Detector reading (output from amplifier)
  3. Any attenuation you added between amplifier output and detector
Calculating Gain

The math is straightforward:

Gain (dB) = [Detector Reading (dBm) + Attenuator Value (dB)] – Generator Output (dBm)

For example:

  • Generator output: -20 dBm
  • Detector reads: +5 dBm
  • 10 dB attenuator in line
  • Gain = (+5 + 10) – (-20) = 15 – (-20) = 35 dB
Frequency Sweep for Gain Response

To fully characterize your amplifier, you need to measure gain across its operating frequency range. Modern signal generators with analyzer modes excel here – they can automatically sweep frequency and plot the response.

Set up a frequency sweep:
  1. Define your start and stop frequencies (typically the amplifier’s specified range)
  2. Set an appropriate step size (1-10 MHz steps work for most applications)
  3. Maintain constant input power throughout the sweep
  4. Record output power at each frequency point

The resulting plot shows you the amplifier’s gain flatness. Most amplifiers exhibit some gain variation across frequency, a few dB of variation is typical.

Avoiding Amplifier Saturation

Inexperienced testers can often go wrong at this point. Push too much power into an amplifier, and it saturates, giving you artificially low gain readings that don’t represent linear performance.

Recognizing Saturation

As you increase input power, gain should remain constant – until it doesn’t. When an amplifier starts to saturate, you’ll see the gain decrease as input power increases.

Signs your amplifier is saturating:
  • Gain drops by 1 dB or more from small-signal values
  • Output power doesn’t increase proportionally with input power
  • Output signal shows distortion (if you’re monitoring with a spectrum analyzer)
The Right Input Power Level

For accurate small-signal gain measurements, keep your input power well below the compression point. A good rule of thumb is to stay at least 10 dB below P1dB if you know that spec, or use an input level that’s 15-20 dB below the amplifier’s maximum rated output.

Finding the linear range experimentally:

Start with very low input power (-30 dBm or lower). Gradually increase input power in 2-3 dB steps while recording output power and calculating gain. Plot gain vs. input power.

In the linear region, gain stays constant. When you see gain start to drop, you’ve found the onset of compression. Back off several dB from that point for your standard measurement power level.

Interpreting Your Measurement Data

Raw numbers are one thing, but understanding what they tell you about your amplifier is another. Here’s how to make sense of your RF amplifier gain measurements.

Gain Flatness

Look at your frequency sweep data. How much does gain vary across the frequency range?

  • ±0.5 dB variation: Excellent flatness, typical of well-designed amplifiers
  • ±1-2 dB variation: Good performance for general-purpose amplifiers
  • ±3 dB or more: Acceptable for some applications, but consider whether you need equalization

Gain rolloff at band edges is normal and expected. Sharp rolloff suggests the amplifier is approaching its design limits at those frequencies.

Gain Consistency

Measure gain at several points across the frequency range. Your measurements should be repeatable: if you measure 25 dB gain at 1 GHz, then change frequency and come back, you should get 25 dB again (within your measurement uncertainty).

If gain varies significantly between measurements at the same frequency, investigate:

  • Power supply stability
  • Temperature effects (is the amplifier heating up?)
  • Connection quality (intermittent connections can cause variations)
  • RF generator output stability
Comparing to Specifications

How do your measurements stack up against the manufacturer’s datasheet? Most amplifier specs include some tolerance, typically ±1 dB for gain.

If you’re significantly outside spec, consider:

  • Is your measurement setup accurate? (Verify with a known-good amplifier if possible)
  • Is the amplifier operating under the same conditions as the spec (frequency, temperature, supply voltage)?
  • Could the amplifier be damaged or degraded?

Common Mistakes When Testing RF Amplifier Gain

I’ve made these mistakes myself, and I’ve seen countless others make them too. Learn from our collective experience and avoid these pitfalls.

Mistake #1: Ignoring Cable Loss

Every cable, connector, and adapter adds loss to your measurement. At microwave frequencies, even a short cable can introduce 0.5-1 dB of loss. That error goes straight into your gain calculation.

Solution: Measure your test cables at your operating frequency and account for the loss. Better yet, use the same cable setup for calibration and measurement so the losses cancel out.

Mistake #2: Overdriving the Amplifier

It’s tempting to use high input power because it’s easier to measure. But if you’re compressing the amplifier, you’re not measuring small-signal gain, you’re measuring something else entirely.

Solution: Start with low power and work up gradually. Verify you’re in the linear region by checking that gain stays constant as you vary input power.

Mistake #3: Poor Impedance Matching

Reflections from impedance mismatches can cause standing waves that make your measurements frequency-dependent in unpredictable ways.

Solution: Use quality 50-ohm components throughout. Terminate unused ports. Consider measuring VSWR at input and output if you suspect matching issues.

Mistake #4: Neglecting Thermal Effects

Amplifiers heat up during operation. As they heat, their gain can change, sometimes by several dB.

Solution: Allow the amplifier to reach thermal equilibrium before taking measurements. For high-power amplifiers, this might take several minutes. Better yet, use proper heatsinking or cooling.

Practical Applications and Use Cases

Understanding why you’re measuring gain helps you choose the right measurement approach. Different applications have different requirements.

Production Testing

When testing amplifiers on a production line, speed matters. You need a repeatable, fast measurement that verifies the unit meets specs without taking five minutes per device.

Set up a single-frequency gain measurement at mid-band. Establish pass/fail limits (typically specification ±tolerance). Automated test equipment can measure gain in seconds using this approach.

Design Validation

When validating a new amplifier design, you want comprehensive characterization: gain vs. frequency, gain vs. power, gain vs. temperature, and more.

This requires more time but gives you complete insight into amplifier performance across its operating envelope. Document your measurement setup thoroughly so results are reproducible.

Troubleshooting and Repair

When an amplifier isn’t performing correctly, gain measurements help isolate the problem. Compare current measurements to baseline or specification data.

Significant gain loss suggests component degradation or failure. Gain variation with frequency might indicate matching network issues. Compression at low power levels could mean a damaged transistor.

Documenting Your Measurements

Good documentation makes your measurements valuable long-term. Whether you’re characterizing production units or validating a design, proper records matter.

Include in your measurement report:

  • Equipment used (model numbers and serial numbers)
  • Test setup configuration and connection diagram
  • Environmental conditions (temperature, humidity if relevant)
  • Input power level used for measurements
  • Complete frequency sweep data
  • Calculated gain with uncertainty estimate
  • Any deviations from standard procedure
  • Date and operator name

For production environments, consider using automated data logging that captures measurements directly from your test equipment. This eliminates transcription errors and creates a permanent record.

Practical Takeaways for Accurate Gain Measurement

Testing RF amplifier gain doesn’t have to be complicated or require expensive equipment. With a quality signal generator, proper technique, and attention to detail, you can make accurate, reliable measurements that rival professional lab results.

The major takeaways:

  • Start with low input power and verify you’re in the linear range
  • Account for all cables, connectors, and attenuators in your setup
  • Sweep frequency to fully characterize gain response
  • Document your measurements and setup for repeatability
  • Recognize the signs of saturation and compression

Whether you’re validating production amplifiers, troubleshooting field returns, or characterizing a new design, these techniques give you the tools to measure gain with confidence. The measurement process might take 30 minutes the first time you do it, but with practice, you’ll be able to characterize an amplifier in just a few minutes while maintaining excellent accuracy.

Now it’s time to put this knowledge into practice. Set up your test bench, connect your equipment, and start measuring. You’ll be surprised how quickly you develop an intuition for what good measurements look like and how to spot problems in your setup or the amplifier under test.

/by

RF Harmonic Filtering: Improving Measurement Accuracy with Low Pass Filters



If you have noticed inconsistent rejection data when testing filters with a USB signal generator, unfiltered harmonics might be the culprit. In this video, Robert demonstrates how RF harmonic filtering can correct skewed measurements and explains why using a Low Pass Filter (LPF) is essential for achieving lab-grade accuracy. This guide is perfect for anyone using the analyzer portion of their TPI units for insertion loss measurements.

Key Takeaways:

  • The Harmonic Challenge: Learn why versatile USB generators often output harmonics along with your selected frequency, which can interfere with your detector readings.
  • Rejection Floor Issues: Understand how these harmonics can affect your readings, making a filter’s rejection look significantly worse than it actually is.
  • The LPF Solution: See a live demonstration of how adding a 500 MHz Low Pass Filter helps you achieve a more correct response by suppressing unwanted harmonics.
  • New Product Announcement: Learn about the upcoming set of low pass filters (500 MHz and 1.2 GHz) currently in development to support future measurements.

Step-by-Step Walkthrough:

When performing absolute forward response measurements, precision is key. In this demonstration, Robert utilizes the TPI 10006A to walk through a common pitfall in RF testing: harmonic interference.

  1. Setting Up the Baseline The process begins by connecting the RF output to the RF detector input. The first critical step is “zeroing out” the cable so it is not part of the measurement. By storing the cable’s baseline response, you can switch to insertion loss mode to ensure the cable is excluded from the actual filter measurement. Robert sets his markers and grid for a 433 MHz SAW filter with a 200 MHz span.
  2. Identifying the Harmonic Issue USB signal generators are incredibly versatile, but they do not filter harmonics. If you select 100 MHz, you are also getting 200 MHz, 300 MHz, and all subsequent harmonics. When testing a 433 MHz SAW filter, these harmonics can cause the detector to show a rejection of only about -29 or -30 dB—a result Robert knew was incorrect for this specific filter.
  3. Applying a Low Pass Filter To fix this, Robert inserts a 500 MHz Low Pass Filter into the signal path. This ensures that while the 433 MHz fundamental frequency passes through, the second harmonic and others are suppressed before they can affect the detector.
  4. Analyzing the Results With the LPF in place, the results are immediate. The rejection improves to the -49 to -50 dB range, which is the limit of the current y-axis setting. While the LPF adds a small amount of extra insertion loss (moving the peak from -3.5 dB to roughly -4 dB), the resulting data is far more accurate because the harmonics are no longer causing interference.
  5. The Future of TPI Generators To assist users in the future, Robert announced that he has developed a set of low pass filters that are currently in process. These filters—one at 500 MHz and one at 1.2 GHz—will be added to future sales to help with 315, 400, 800, and 900 MHz measurements, ensuring users get the most accurate results right out of the box.
/by

Portable RF Testing: Setting Up a Field Lab for Under $500

portable RF testing with TPI-1002-A from RF-Consultant with 2.4GHz antenna

There’s something liberating about doing portable RF testing in the field rather than being tethered to a lab bench. Whether you’re installing antennas on a rooftop, conducting site surveys for wireless coverage, or troubleshooting communication systems at a remote location, having portable RF testing equipment changes everything.

However, traditional RF test equipment is heavy, requires wall power, and costs thousands of dollars. The good news? You can build a genuinely capable portable RF testing setup for under $500 that handles real-world field scenarios.

Our guide shows you exactly how to assemble a portable RF test kit that runs on battery power, fits in a backpack, and gives you professional measurement capabilities wherever you need them.

Why Portability Matters in RF Testing

Before we jump into the equipment list, let’s talk about why portable RF testing capability is so valuable.

Real-World Scenarios Where Portable RF Testing Occurs:

Antenna Installation and Tuning – You’re on a rooftop installing a new antenna system. Without portable test equipment, you’d install the antenna, climb down, test it in the shack, climb back up to adjust, and repeat. With field testing capability, you tune and verify performance right there on the roof.

Site Surveys – Wireless network planning requires measuring signal strength at various locations. Portable equipment lets you walk the site, take measurements, and make real-time decisions about optimal equipment placement.

Emergency Response – When communication systems fail during emergencies, you need to troubleshoot on location. Portable test equipment means you can diagnose and fix problems without hauling gear back to a shop.

Ham Radio Field Day – Setting up temporary stations for Ham radio field operations requires quick antenna testing and verification. Portable RF equipment makes setup faster and more reliable.

The common thread? You need equipment that works where the work is happening, not only in a climate-controlled lab.

USB-Powered Signal Generator

At the heart of a portable RF testing setup is a signal generator that doesn’t need wall power. This is where USB-powered RF signal generators have revolutionized field testing.

What Makes a Good Portable Signal Generator

USB Power Compatibility – The equipment draws power from a standard USB connection, typically requiring just 5V at under 500mA. This means you can power it from a laptop, USB battery pack, or even a solar panel USB charger.

Wide Frequency Coverage – Look for 35 MHz to 4.4 GHz coverage. This range handles VHF/UHF amateur radio, cellular frequencies, WiFi bands, and most wireless applications you’ll encounter in the field.

Calibrated Output Power – Field testing requires knowing your signal levels accurately. Equipment with ±1 dB output accuracy across the power range gives you confidence in measurements.

Compact Form Factor – When you’re hiking to a mountaintop repeater site, every ounce matters. Look for units under 10 ounces that fit easily in a pack.

TPI-1002-A USB Signal Generator / USB power supply / 2.4 Ghz Dipole antenna

Photo shows TPI-1002-A USB Signal Generator / USB power supply / 2.4 Ghz Dipole antenna

The TPI-1002-A: Purpose-Built for Field Work

The TPI-1002-A signal generator exemplifies what makes portable RF testing practical. At just 8 ounces and 6.4 inches long, it disappears into a backpack but delivers 35 MHz to 4.4 GHz frequency coverage with +10 dBm to -70 dBm output range.

What makes it field-worthy:

True USB Power – Draws under 350mA from a 5V USB source. A standard 10,000mAh battery pack powers it for an entire day of field work.

Standalone Operation – The built-in microcontroller stores your last configuration. Once you’ve set it up via laptop, disconnect the PC and it runs independently from USB power.

Script capable – Easily write a test sequence and store it as a script file within the unit. Disconnect from your laptop and simply push a button whenever you want to run your test.

Aluminum Enclosure – Extruded aluminum housing handles the bumps and drops that happen in field work. No plastic case that’ll crack when you set your pack down too hard.

Software-Controlled – The TPI-Link software gives you full control from a laptop, then the unit remembers settings when you disconnect.

At $290, it’s the most expensive single item in your portable kit, but it’s also the most important. Everything else supports what the signal generator enables.

Essential Portable RF Test Equipment (Under $500 Total)

Let’s build out the complete kit. I’ll break down each component, explain why you need it, and give you realistic budget numbers.

The Core Equipment List

USB-Powered Signal Generator (TPI-1002-A) – $290

Your primary signal source for all field measurements. Handles frequency generation, beacon mode for antenna testing, and modulation capabilities.

Directional Coupler (20 dB) – $45-65 (not needed for sight surveys or antenna testing)

Essential for measuring reflected power and VSWR (not available with TPI-1002-A). Choose one that covers your primary frequency range. For VHF/UHF work, a DC-3 GHz coupler works well. For 2.4 GHz Wi-Fi and above, get a 2-6 GHz model. These tests are essential for antenna tuning and require TPI-1005-A or TPI-1006-A RF signal generators.

RF Power Meter (Simple Diode Detector) – $40-60

For measuring actual power levels when you need verification beyond your signal generator’s calibration. A basic diode detector with USB connection works great for field use.

Quality RF Cables (Set of 3) – $60

  • 1x 3-foot cable
  • 2x 1-foot cables

Get quality cables with solid SMA connectors. Cheap cables fail in the field, and you’re miles from a replacement. Budget $20 per cable.

Adapter Kit – $30

A small collection of essential adapters: N to SMA, SMA to BNC, male-to-male and female-to-female barrels. Field work always requires at least one adapter you didn’t expect.

50-Ohm Terminations (SMA) – $40

You need a proper termination for any unused ports.

USB Battery Pack (20,000mAh) – $30

Powers your signal generator all day. Get one with at least two USB outputs so you can charge your phone while powering test equipment.

Small Multimeter – $25

For checking DC voltages and continuity. Invaluable for troubleshooting power issues in the field.

Running Total: $590

Okay, we’re $90 over budget. Here’s how to get under $500:

Budget Option 1: Skip the separate RF power meter initially ($520 without meter). Many signal generators have built-in detectors that handle basic measurements.

Budget Option 2: Start with one high-quality cable and use cheaper cables for non-critical connections ($540 with $10 cables for secondary use).

Budget Option 3: Buy the directional coupler used on eBay or from ham radio swap meets. You can often find quality couplers for $30-40 ($565 with used coupler).

Mix and match these options to hit your $500 target while keeping the essential capabilities intact.

Organizing Your Portable Lab

Having the right equipment matters, but organization determines whether it’s actually useful in the field. Here’s how to pack and protect your gear.

The Container

Skip fancy cases initially. A quality camera bag or small backpack works perfectly and costs $30-50. Look for:

  • Padded compartments for protection
  • Water-resistant exterior
  • Comfortable straps if you’re hiking to remote sites
  • External pockets for cables and small items

I use a small Lowepro camera bag that cost $35 on sale. It’s been dropped, rained on, and thrown in truck beds, and everything inside stays protected.

Cable Management

Nothing’s more frustrating than tangled cables when you’re on a rooftop in the wind. Here’s the system that works:

Velcro Cable Ties – Wrap each cable individually after use. Costs maybe $5 for a pack of ties that’ll last years.

Labeled Cables – Use a label maker or masking tape and Sharpie. “3ft SMA” beats searching through three identical-looking cables.

Cable Bag – A separate small bag or pouch keeps cables from tangling with other equipment. A basic zipper pouch works fine.

Small Parts Organization

Adapters, terminators, and small connectors need their own system. A small plastic organizer with divided compartments (the kind used for fishing tackle) works perfectly. They cost $5-10 and keep everything visible and accessible.

Label each compartment: “SMA Adapters,” “Terminators,” “BNC Connectors,” etc. Five seconds of organization saves five minutes of searching in the field.

Real Field Scenarios: Putting Your Kit to Work

Let’s walk through actual field situations and see how your portable RF lab handles them. These aren’t theoretical scenarios. They are based on real work I’ve done and problems I’ve solved with portable equipment.

Scenario 1: Rooftop Antenna Installation (Requires TPI-1005-A or TPI-1006-A)

The Situation: You’re installing a new VHF antenna on a commercial building rooftop. You need to verify VSWR and tune the antenna for optimal performance before leaving the site. Here we see the genius behind TPI Signal Generators. You do not need to carry a separate piece of test equipment for this measurement. TPI-1005-A has a built in RF detector capable of measuring VSWR.

Your Process:

Connect your signal generator’s RF output to the directional coupler’s main uncoupled port, which is sometimes labeled output. Connect the coupler’s main coupled port, which is sometimes labeled input, to the antenna feedline. The coupled port goes to your power meter or detector.

Set your signal generator to the antenna’s design frequency. Note the forward and reflected power readings. Calculate VSWR from the reflection coefficient.

Adjust the antenna elements while watching reflected power change. When reflected power minimizes, you’ve found optimal tuning. Sweep across the operating frequency range to verify VSWR stays acceptable across the band. A separate Application Note explains this process more clearly.

What makes this possible: USB power means no searching for outlets on the roof. Lightweight equipment means you’re not exhausted after carrying it up three flights of stairs. Everything runs from a battery pack sitting in your backpack.

Scenario 2: Wireless Network Site Survey

The Situation: A client needs Wi-Fi coverage analysis for a warehouse. You need to measure signal strength at various locations and identify dead zones.

Your Process: (Requires a spectrum analyzer or equivalent separate detector.)

Configure your signal generator for 2.4 GHz and transmit 0dBm continuous. Set it up at the proposed access point location. The unit continuously transmits at a known power level, letting you measure signal strength throughout the facility.

Walk the site with your Analyzer or RF detector, noting signal levels at each location. The continuous transmit mode means you don’t need to babysit the signal generator. It can run standalone from battery power while you survey. You can run a script file transmitting a certain time at many different frequencies.

Plot signal strength on a floor plan. Identify locations where signal drops below acceptable levels. Recommend additional access point locations or directional antennas to solve coverage problems.

What makes this possible: Standalone operation means the signal generator doesn’t need constant attention. Battery power means placing it exactly where the access point will mount, not where you can reach an outlet.

Scenario 3: Ham Radio Field Operation

The Situation: It’s Field Day, and your club is setting up temporary stations. Multiple antenna systems need testing and tuning before the event starts.

Your Process:

Move between antenna locations with your portable kit. For each antenna, quickly verify resonance and VSWR at the operating frequencies. Identify any that need adjustment before operations begin.

For antennas that aren’t performing well, use your signal generator to inject a signal at various points in the feedline system. This helps isolate whether problems are in the antenna itself, connectors, feedline, or ground system.

Test all stations in under an hour because your setup is fast and portable. No hauling heavy equipment or running extension cords to antenna sites.

What makes this possible: The complete field kit fits in one backpack. Setup takes minutes, not hours. Battery operation means testing antennas far from power sources.

Scenario 4: Emergency Communications Troubleshooting

The Situation: A remote repeater site has failed. You need to diagnose whether the problem is in the repeater, feedline, or antenna system.

Your Process:

Hike to the repeater site with your portable RF kit. Disconnect the antenna from the repeater and connect your signal generator. Transmit a test signal while monitoring reflected power.

If the antenna system shows good VSWR, the problem is likely in the repeater itself. If VSWR is terrible, you’ve got feedline or antenna damage. This diagnosis happens in five minutes and tells you whether you need to come back with replacement feedline or repeater equipment.

Test the repeater receiver by injecting a known signal at its input. If it responds correctly, the receive path works. This isolates problems to specific subsystems.

What makes this possible: Lightweight equipment you can carry in a backpack means accessing remote sites. Battery power means testing even when site power is down. Comprehensive capabilities in a small package enable complete diagnostics without multiple trips.

Power Management in the Field

Battery power enables portability, but running out of juice in the middle of a job is frustrating. Here’s how to manage power effectively.

Calculating Runtime

Most USB-powered signal generators draw 300-400mA at 5V. That’s about 2 watts. A 20,000mAh battery pack at 5V provides 100 watt-hours of capacity.

Theoretical runtime: 100Wh ÷ 2W = 50 hours

Reality is closer to 30-35 hours due to conversion losses and battery pack inefficiency. Still, that’s multiple full days of field work from one battery pack.

Power draw from other equipment:

  • Laptop (if used for control): 15-30W
  • USB power meter: 0.5W
  • Phone charging: 5-10W

The signal generator itself is your most efficient device. The laptop is your power hog.

Extending Battery Life

Use Standalone Mode – Configure your signal generator via laptop, then disconnect and let it run independently. Your battery pack powers the generator only, not the laptop.

Solar Charging – A small USB solar panel (15-20 watts) charges your battery pack during the day. For extended field operations, this essentially gives you unlimited runtime in sunny conditions.

Multiple Battery Packs – A second 20,000mAh pack costs $30 and doubles your capacity. For multi-day operations, it’s cheap insurance.

Smart Power Management – Turn off the RF output when you’re not actively measuring. Modern signal generators have very low standby power draw.

Environmental Considerations for Field Testing

Field work means dealing with conditions that don’t exist in the lab. Here’s how to protect your equipment and get reliable measurements despite weather, temperature, and other environmental factors.

Weather Protection

Rain and Moisture – Even “weather-resistant” bags aren’t waterproof. Keep a few large Ziploc bags in your kit. In unexpected rain, slip equipment into bags for protection. Cost: $2, value: priceless.

Direct Sunlight – Black equipment sitting in the summer sun gets hot enough to burn your hands. More importantly, it affects calibration and can damage sensitive electronics. Keep equipment shaded when possible. A small reflective emergency blanket ($3) works as a sunshade.

Wind – High winds make measurements difficult and can damage connections. Work in a sheltered area when possible. On rooftops, position yourself to block wind from connectors while you work.

Temperature Effects

RF equipment specifications typically guarantee performance from 32°F to 122°F (0°C to 50°C). Outside this range, you may see calibration drift or degraded performance.

Cold Weather: Batteries perform poorly in extreme cold. Keep your battery pack inside your jacket to maintain temperature. Let equipment warm up for 5-10 minutes before taking critical measurements.

Hot Weather: Electronics can overheat in direct summer sun. Modern equipment has thermal protection and will shut down before damage occurs, but you’ll lose measurement time while it cools.

Maintenance and Care of Portable Equipment

Field equipment takes more abuse than lab gear. Proper maintenance keeps it working reliably for years.

Regular Inspection

After each field trip, inspect:

Connectors – Look for bent pins, damaged threads, or debris. Clean connectors with compressed air or a soft brush. A damaged connector is worse than no connector as it’ll damage whatever you connect it to.

Cables – Flex each cable along its length, feeling for internal breaks. Check that connectors are firmly attached. RF cables fail from repeated bending at the connector interface.

Battery Packs – Check charge level immediately after returning. Don’t store batteries fully discharged. Recharge to about 50% for long-term storage.

Storage Between Uses

Don’t leave equipment in your vehicle. Temperature extremes (especially heat) degrade electronics and batteries. Store your portable kit indoors at room temperature.

Keep silica gel packets in your storage bag to control humidity. Moisture causes corrosion, especially in connectors and cables.

Calibration Checks

Every few months, verify your equipment’s calibration. Connect your signal generator directly to your power meter and check readings across the frequency range. If you’re more than 1-2 dB off expected values, investigate. TPI will calibrate your equipment on demand for free. You pay for shipping.

Most drift comes from damaged cables or connectors, not equipment failure. Replace suspect cables and retest before assuming equipment problems. TPI will service your equipment for free. You only pay for shipping. No one in the industry provides free service and recalibration except TPI.

Expanding Your Portable Lab Over Time

You don’t need everything on day one. Start with the core kit and add capabilities as needs arise. Here are logical expansions:

Next Additions (Prioritized):

Spectrum Analyzer Dongle ($150-250) – A USB spectrum analyzer like the TinySA Ultra adds spectrum viewing capability. Invaluable for troubleshooting interference and verifying signal quality.

Attenuator Set ($50-80) – Variable or fixed attenuators in 3, 6, 10, and 20 dB values. Essential for precise signal level control.

Additional Directional Couplers ($100-150) – Couplers for additional frequency ranges extend your measurement capabilities. A low-frequency coupler (50-500 MHz) complements your 2-6 GHz coupler.

Laptop/Tablet Specifically for Field Use ($200-400) – A dedicated ruggedized tablet or inexpensive laptop that you don’t mind exposing to field conditions. You’ll work faster when you’re not worried about damaging your primary computer.

Each addition expands capabilities, but the core $500 kit handles 80% of field testing scenarios you’ll encounter.

Skills Matter More Than Equipment

Having portable RF test equipment is only valuable if you know how to use it effectively. Here are the skills worth developing:

Quick Setup – Practice your setup routine until it’s second nature. The faster you can connect equipment and take measurements, the more productive your field time.

Mental Troubleshooting Models – Develop a systematic approach to diagnosing problems. Signal path analysis, systematic substitution, and baseline comparison are techniques that work with any equipment.

Environmental Adaptation – Learn to work efficiently in awkward positions, bad weather, and challenging locations. Sometimes the measurement technique matters less than whether you can hold onto your equipment in 30 mph winds.

Safety Awareness – Rooftop work, tower climbing, and remote locations all carry risks. Equipment is replaceable. YOU. ARE. NOT. Never compromise safety for a measurement.

Freedom to Test Anywhere

Building a portable RF testing lab for under $500 doesn’t mean grabbing the cheapest gear. Smart choices let you maximize capability while staying within budget.

Your USB-powered signal generator forms the foundation as it’s the one component where quality matters most. Everything else supports what that signal generator enables you to do.

The result is a complete RF testing capability that fits in a backpack, runs all day on battery power, and handles real-world field scenarios from antenna installation to emergency troubleshooting. You’re not limited to working where power outlets are available or where you can set up a full bench.

Start with the core kit outlined here. Get comfortable using it in the field. Add capabilities as specific needs arise. Within a year, you’ll wonder how you ever managed without portable RF testing equipment.

Once you’ve assembled your portable lab, opportunities appear that didn’t exist before. That antenna project you’ve been putting off becomes doable. That favor for a friend who needs help with their repeater becomes possible. Your Ham radio club suddenly has expert field testing capabilities for Field Day.

With portable RF testing, you can do work that wouldn’t be possible otherwise.

/by

How to Measure Forward Response with the TPI-1006 RF Consultant Signal Generator

Screenshot of forward response measurement using the TPI-1006 RF signal generator from RF Consultant

In this demonstration, I walk through the process of how to measure a forward response using the TPI-1006 RF Signal Generator and a bandpass filter. This kind of test is helpful for analyzing the filter’s insertion loss and verifying its frequency characteristics.

Key Takeaways

  • The TPI-1006 RF Signal Generator allows precise forward measurements with minimal setup.
  • This test confirms the insertion loss and band shape of a standard 2.4 GHz filter.
  • Increasing the resolution helps clarify the behavior of the filter’s transition regions.

Watch the Demo

Want to see the process in real time? Watch the full video here to follow along as I measure and analyze a bandpass filter using the TPI-1006.

Step-by-Step Walkthrough: How to Measure Forward Response with the TPI-1006 RF Consultant Signal Generator

1. Zero Out the Cable

As with any network analyzer test, the first step is to zero out the cable to establish a proper baseline. This ensures the measurement reflects only the performance of the device under test—not the cable.

2. Configure the Analyzer

  • The analyzer is set to Forward Mode
  • Center frequency: 2.44 GHz
  • Span: 300 MHz
  • Y-axis scale: Starts at 0 dB, lowered down to -65 dB

These settings give us a full view of the filter’s forward response across the band of interest.

3. Capture Baseline Measurement

After the initial sweep is complete, I hit Store to lock in the baseline (with no filter connected).

4. Insert the Bandpass Filter

Next, I connect the 2.4 GHz bandpass filter and run the test again to measure its insertion loss.

To get a clearer view of the filter skirts, I increase the Span to 600 Mhz, giving better resolution and detail on the filter shape.

5. Review the Results

The results show an insertion loss of about 1 dB, which is expected for this filter. The response curve confirms the filter is working correctly, with sharp cutoffs and minimal signal loss in the passband.

/by

How to Measure Reflected Power Using the TPI-1006 RF Signal Generator

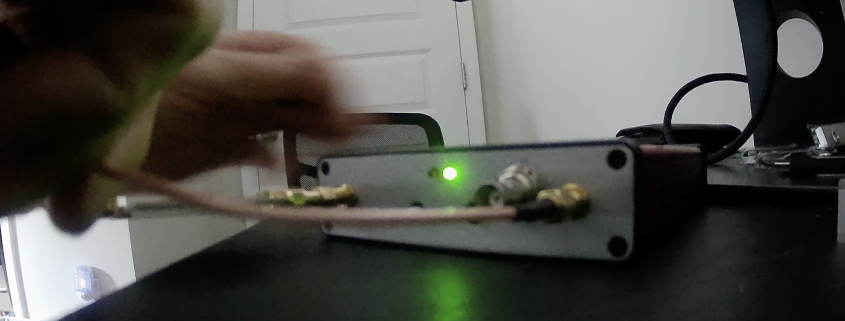

Measuring reflected power with the TPI-1006 RF signal generator from RF Consultant

In this video, I demonstrate how to measure reflected power using the TPI-1006 RF Signal Generator and a 20 dB directional coupler. This process helps measure how much power is reflected back from a device under test—typically used to determine return loss or match quality.

Key Takeaways

  • The TPI-1006 provides accurate reflected measurements using a simple directional coupler.
  • It can match results from a much more expensive network analyzer.
  • This tool is compact, versatile, and ideal for RF testing in the lab or field.
  • Engineering classrooms can afford this powerful tool for training.
  • Ham operators can measure antenna VSWR and cable losses.

Watch the Demo

Want to see it in action? Watch the full video here to follow along with the setup and see the TPI-1006 deliver professional-grade performance.

Step-by-Step Walkthrough: How to Measure Reflected Power Using the TPI-1006 RF Signal Generator

1. Set Up the Analyzer

I start by switching the measurement mode to “Reflected.” When prompted, I confirm that I’m sure I want to make this change.

Next, I:

  • Set the center frequency to 2440 MHz (bandpass filter center frequency)
  • Set the span to 25 MHz for close in measurement. Can be set to 500MHz as well to see the rolloff of the filter.

These settings give a focused view of the reflected signal across a narrow frequency range.

2. Configure the Directional Coupler

I use a 20 dB directional coupler, which I’ve found to work well for this setup. Here’s how I connect it:

  • The RF output of the TPI-1006 connects to the output port of the coupler.
  • The coupled port of the coupler connects to the TPI-1006 detector input.
  • The input port of the coupler is left unconnected.

This setup routes forward power to the device under test and captures reflected power for measurement.

3. Start the Measurement

With the analyzer still set to “Reflected,” I begin the measurement. The software detects the loss in the coupler system. I let it run once, then store the result.

The return loss at this point is set to 0 dB, which is expected without a load connected.

4. Connect the Bandpass Filter

I now connect a 2.4 GHz bandpass filter, terminated with a 50-ohm load. This simulates a realistic device under test.

After connecting it, I select “reflected” and rerun the measurement. The result now shows a return loss of approximately -17 dB at 2.44 GHz, which indicates a good impedance match with minimal reflection.

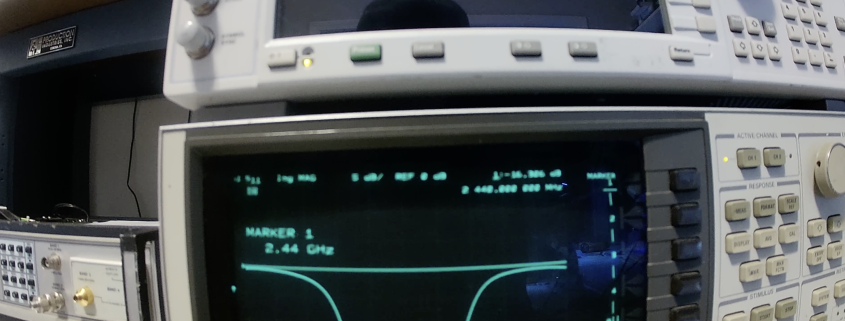

5. Verify with a Network Analyzer

To validate the measurement, I connect the same setup to a traditional HP Network Analyzer.

The network analyzer reports a return loss of -16 dB, almost identical to what the TPI-1006 reported. This consistency shows how accurate and powerful the TPI-1006’s built-in scalar analyzer is.

/by

Top Features to Look for When Choosing RF Test Equipment

RF test equipment is one of the most used tools in the telecommunication, aerospace, defense, and electronics manufacturing industries. When working on signal analysis, spectrum monitoring, or 5G network development, the right kind of RF test equipment is what matters to be able to deliver accurate measurements and reliable performance. With so many tools available in the market, it can become very confusing for a person as to which is the best. Here are the top five features to prioritize when selecting RF test equipment to maximize efficiency and accuracy.

1. Check For Frequency Range

The type of signals that a device measures depends on the frequency range of the RF test equipment. In this case, you may need a device that can support a wide range, like a device with low frequency for industrial applications or with high frequency for advanced technologies such as 5G or even for satellite communication.

For instance, in the case of testing 5G networks, you may need RF test equipment that will handle millimeter-wave frequencies starting from 24 GHz and beyond. The specific frequency bands in use should align with the kind of equipment selected to avoid constraints in the kind of testing done.

2. Look for Accuracy

Accurate and precise measurements are crucial to any RF testing scenario. Even the smallest errors in RF measurement cause more significant problems in the design, development, or performance of the system. Look for equipment with high sensitivity to detect weak signals.

3. Signal Analysis Capability

Advanced signal generator analysis is a key feature in RF test equipment, especially for applications like wireless communication and radar systems. Look for tools that offer comprehensive analysis capabilities, such as:

  • Spectrum Analysis
  • Power Measurement

Quality RF test equipment should give you as much detail about signal behavior as possible, which will help you troubleshoot and optimize system performance.

4. Connectivity and Data Integration

In today’s data-driven world, RF test equipment must support seamless connectivity and data sharing. Features like USB, Ethernet, or Wi-Fi connectivity enable real-time data transfer and remote monitoring. Software integration for data analysis and reporting is also available, making workflows much more efficient and helping make the right decisions at the right time.

Final Thoughts

Whether you are designing advanced wireless systems or troubleshooting complex networks, the right RF test equipment is a critical step to success. By focusing on these features, you can ensure your testing process is efficient, accurate, and future-ready. Contact the RF Consultant today for all the wireless consultant stuff and a lot more.

/by

RF Test Equipment: Essential Tools for Accurate Measurements and Reliable Performance

rf signal generator usb

In the world of telecommunications, electronics, and signal processing, RF test equipment plays a crucial role in ensuring that devices and systems perform to their highest standards. Whether it’s testing the functionality of wireless communication devices, analyzing antenna performance, or verifying the operation of complex radio systems, RF test equipment is a cornerstone of the industry. For engineers and businesses involved in RF design, testing, and development, having the right RF test equipment and expertise is essential. This is where RF Consultants like RF Consultant come into play, offering comprehensive solutions and expert advice for all your RF testing needs.

What is RF Test Equipment?

RF test equipment is used to measure, analyze, and troubleshoot devices and systems that operate using radio frequency signals. These signals are used in a wide variety of applications, such as wireless communication, broadcasting, radar, GPS, and satellite systems. RF test equipment covers a broad range of tools and instruments designed to evaluate the performance, efficiency, and compliance of RF components, including antennas, amplifiers, transmitters, receivers, and wireless communication devices.

The primary objective of RF testing is to ensure that these devices are operating at the correct frequency, power levels, and signal quality. RF test equipment allows engineers to perform essential tasks such as:

  • Measuring signal strength and frequency
  • Analyzing waveform characteristics
  • Assessing impedance matching and signal integrity
  • Testing transmission and reception capabilities

The accuracy and reliability of RF test equipment are vital to achieving optimal performance and compliance with industry standards.

Key Types of RF Test Equipment

Several types of RF test equipment are used in the testing and validation of RF devices and systems. Each piece of equipment serves a unique function and is used at different stages of the development, testing, and deployment processes:

  1. Spectrum Analyzers
    Spectrum analyzers are essential tools for analyzing the frequency spectrum of signals. They allow engineers to observe the frequency, amplitude, and distortion of signals across a wide range of frequencies. Spectrum analyzers help ensure that signals are transmitted without interference and that they meet regulatory standards for frequency usage.
  2. Signal Generators
    RF signal generators create known signals with precise frequency, power, and modulation. They are used for simulating the behavior of RF systems during testing. Engineers use signal generators to test devices and systems under controlled conditions, ensuring they perform correctly in real-world scenarios.
  3. Vector Network Analyzers (VNAs)
    VNAs are used to measure the network parameters of RF components, such as impedance, return loss, and transmission loss. They are essential for evaluating the performance of antennas, filters, and amplifiers, ensuring that these components function optimally in various frequency ranges.
  4. Power Meters
    Power meters measure the power output of RF systems. This is important for ensuring that devices are transmitting within the desired power levels and that the signal strength is consistent and within regulatory limits.
  5. Oscilloscopes
    While oscilloscopes are typically used to measure electrical signals, they are also valuable for analyzing RF signals, particularly when used in conjunction with high-frequency probes. They allow engineers to view waveforms, making it easier to diagnose signal integrity issues.
  6. Antenna Test Systems
    Antenna testing is essential for ensuring the correct performance of wireless devices. RF test equipment for antennas can evaluate radiation patterns, gain, and efficiency to verify that antennas meet design specifications and work effectively in real-world environments.

The Role of RF Consultants

Given the complexity of RF testing and the vast array of equipment involved, RF consultants provide critical expertise in helping businesses navigate the world of RF testing.  offers a variety of consulting services for organizations needing assistance with RF test equipment, testing procedures, and data analysis. Here’s how an RF consultant can support your business:

  1. Expert Guidance in Selecting RF Test Equipment
    With so many types of RF test equipment available, choosing the right tools for your specific needs can be overwhelming. RF consultants can evaluate your project requirements and recommend the most suitable equipment for accurate and reliable testing, ensuring that you get the best value for your investment.
  2. Custom Testing Solutions
    Different projects may require specialized testing solutions, and RF consultants can tailor their services to meet the unique needs of your devices. From customized test setups to complex measurements, an RF consultant can provide hands-on support to ensure thorough testing and analysis.
  3. Troubleshooting and Problem Solving
    RF systems can sometimes fail to meet performance expectations, and troubleshooting can be challenging without the right expertise. RF consultants have the knowledge to diagnose and resolve issues, such as signal interference, poor signal quality, or impedance mismatches, ensuring your devices perform at their best.
  4. Training and Support
    For businesses looking to build internal expertise, RF consultants can offer training on how to use RF test equipment, interpret data, and implement best practices. This empowers your team to perform high-quality testing independently, improving your overall efficiency and product quality.
  5. Regulatory Compliance
    Regulatory standards for RF devices, such as those set by the Federal Communications Commission (FCC) and other international bodies, can be complex and subject to frequent changes. RF consultants can guide your business through the compliance process, ensuring that your devices meet the necessary requirements before they are deployed to the market.

Conclusion

RF test equipment is indispensable for ensuring the performance, reliability, and safety of RF systems in various industries, from telecommunications to aerospace. By using the right tools and relying on expert advice from RF consultants businesses can streamline their testing processes and achieve the best results. Whether you need guidance on selecting test equipment, customizing your testing procedures, or troubleshooting performance issues, RF consultants are an invaluable resource for any organization involved in RF technology development. With the right equipment and expert support, you can ensure that your RF devices operate flawlessly and meet all regulatory and performance standards.

/by

Can A Calibrated RF Signal Generator Be Used For Multiple Frequency Bands?

Calibrated RF signal generator

In the fast-evolving landscape of radio frequency (RF) technology, adaptability and precision are the keys to staying ahead. A pivotal question often arises in this dynamic realm: Can a calibrated RF signal generator be used for multiple frequency bands? The resounding answer: Absolutely, and with unparalleled efficiency!

Precision Across Diverse Frequencies

A calibrated signal generator is a sophisticated instrument meticulously designed to generate RF signals with utmost accuracy. Unlike its non-calibrated counterparts, it undergoes a rigorous calibration process, ensuring that the signals produced align precisely with the intended specifications. This inherent precision becomes particularly advantageous when addressing the diverse spectrum of frequency bands demanded by various applications.

Adapting to Varied Frequency Ranges

One of the defining features of a calibrated signal generator is its ability to cover a broad range of frequency bands. This versatility allows users to configure the generator to operate within specific frequency ranges, making it an indispensable tool for industries such as telecommunications, aerospace, and research.

Whether you’re working on low-frequency applications or pushing the boundaries into higher frequency territories, a calibrated generator provides the flexibility needed for a seamless transition between different bands. This adaptability proves invaluable for professionals engaged in multifaceted projects where varied frequency requirements are the norm.

Meeting Industry Standards

The use of a calibrated RF signal generator also aligns with industry standards, ensuring that your testing and measurement processes meet recognized benchmarks. Standards set by organizations such as the International Electrotechnical Commission (IEC) and the National Institute of Standards and Technology (NIST) provide a framework for calibration protocols. Compliance with these standards not only ensures accuracy but also establishes traceability, a vital component in validating the reliability of your RF Signal Generator across multiple frequency bands.

In-House vs. External Services

While some basic calibrations can be performed in-house, the comprehensive and accredited calibrations required for optimal performance are often best entrusted to external calibration services. External calibration labs adhere to strict quality standards, offering traceable certifications that instill confidence in the accuracy of your RF Signal Generator. This collaboration ensures that the instrument remains a dependable ally, capable of navigating the intricacies of multiple frequency bands with finesse.

The calibrated Signal Generator stands out for its versatility in the world of RF technology. Its calibrated precision, adaptability across frequency bands, and adherence to industry standards make it an indispensable asset for professionals navigating the ever-expanding spectrum of RF applications.

To get the best US Made RF signal generator, visit our website, RF Consultant today!

/by

A Comprehensive Guide to the Compact USB RF Signal Generator

Compact USB RF Signal Generator

RF-Consultant is your go-to source for cutting-edge insights in the world of radio frequency technology. Today, we embark on an exploration of a game-changing device the Compact USB RF Signal Generator.

Compact USB RF Signal Generator: Redefining Portability and Precision

Traditionally, RF signal generators have been bulky fixtures in laboratories, limiting the flexibility of testing environments. Enter the compact USB signal generator, a revolutionary device that brings portability and precision to a whole new level. Imagine having the power of signal generation at your fingertips, whether you’re in the lab, the field, or on the go. The compact design of these USB RF signal generators is a testament to the evolution of technology, providing engineers and enthusiasts with a portable solution without compromising on performance.

Portable RF Signal Generation: Anytime, Anywhere

One of the standout features of the Compact USB RF Signal Generator is its portability. No longer confined to a bench, these devices can seamlessly fit into your backpack, giving you the freedom to test signals anywhere, anytime. Whether you’re a field engineer troubleshooting communication networks or a hobbyist experimenting with wireless projects, the portable nature of these signal generators opens up a world of possibilities.

Crafting Signals with Precision

Precision is paramount in the world of RF signals, and these signal generators deliver on this front. Its miniature form factor doesn’t sacrifice accuracy, allowing users to craft signals with the utmost precision. From simple waveforms to complex modulations, these devices offer a versatile range of signal generation capabilities, making them indispensable tools in various industries.

Empowering DIY Enthusiasts

At RF-Consultant, we understand the thrill of hands-on exploration. That’s why we’re excited to share that these signal generators are not just tools for the seasoned professional—they’re also excellent companions for DIY enthusiasts. Imagine building your own portable signal source and unlocking a world of creative possibilities in wireless experimentation.

The Compact USB RF Signal Generator is a game-changer in the world of signal testing and generation. Its portable design, precision, and versatility make it an indispensable tool for professionals, hobbyists, and researchers alike. Stay tuned for more updates from RF-Consultant as we continue to explore and unravel the exciting advancements in radio frequency technology.

/by

Tips and Tricks for Using the TPI-1005-A Signal Generator

TPI-1005-A Signal Generator sale

In the dynamic world of radio frequency technology, staying ahead requires not just cutting-edge equipment but also the knowledge to wield it effectively.

Today, we dive into the indispensable TPI-1005-A Signal Generator on sale. Join us as we learn the tips and tricks that will elevate your signal generation to new heights.

Tip #1: Calibration is Key

Before embarking on any RF experiment or project, you want to know that your equipment is properly calibrated. TPI has taken calibration seriously to ensure that your TPI-1005-A Signal Generator is properly calibrated. Calibration is the foundation of precision, and it ensures that the signals you generate are accurate and reliable. TPI will regularly calibrate and maintain the health of your equipment at no cost to you, which guarantees the integrity of your results.

Tip #2: Explore Waveform Possibilities

One of the standout features of the TPI-1005-A Signal Generator is its versatility in generating a wide array of waveforms. TPI has integrated a waveform generator into the unit. Take advantage of this capability by experimenting with different waveforms to meet the unique requirements of your project. Whether it’s sine, square, triangular, or custom waveforms, understanding how to tailor your signal will open up new possibilities for innovation.

Tip #3: Best in class software

TPI software is what separates us from the rest. The graphical interface is intuitive and easily understood. Unlike other USB powered Signal Generators, TPI-1005-A has hundreds of additional software features that open possibilities in your measurements. Unlike any other company, TPI has developed new software add-ons for clients who needed specific applications. TPI will work with you to provide capability you require at no cost to you. In addition, we provide documentation of the User Command Structure to enable your team to write your own software and will provide help for you in that endeavor.

Tip #4: Synchronize and Modulate

For complex RF applications, synchronization and modulation are indispensable. Learn to leverage the synchronization features of the TPI-1005-A Signal Generator to coordinate multiple signal sources seamlessly. Master the art of modulation to impart specific characteristics to your signals, such as frequency, or phase modulation, enhancing the depth and complexity of your experiments. Narrow Band FM, Wideband FM, a DTMF generator, and Ramp generator are included in the unit. OOK modulation is easily achievable.

Tip #5: Analyzer capability

TPI has integrated an RF Detection system that can be swept in frequency. This allows you to measure RF Filter performance, amplifier gain, and by applying a Directional coupler you can perform SWR measurements. It is a powerful addition to the unit.

At RF-consultant, you can get the TPI-1005-A Signal Generator on sale. By implementing these tips and tricks, you’ll not only elevate your skills but also unlock the full potential of these powerful signal generators. Happy experimenting!

/by
