Description
The TPI-1005-A is a professional-grade, USB-powered radio frequency (RF) signal generator designed for precision testing, tuning, and diagnostics in Land Mobile Radio (LMR) and wireless systems. With an expanded feature set including built-in waveform generation and support for DTMF signals, this unit provides the tools serious engineers need—without the high cost of traditional lab equipment.
Packed in a rugged aluminum housing and driven by the TPI-Link software suite, the 1005-A offers high-performance output, configurable scripting, and data logging in a portable form factor.
Core Features
- Output frequency: 35 MHz – 4.4 GHz
- Output power: +10 dBm to -90 dBm, accurate within ±1 dB
- Built-in 10 MHz reference oscillator (VCTCXO) and external reference input
- Internal 10MHz reference can be tuned for PLL accuracy within 500ppb or better
- Analog waveform generator for sine and square wave output
- DTMF signal generation for tone-based communication system testing
- Reference calibration output and logging support
- Durable aluminum enclosure with precision SMA and BNC connections
TPI-Link Software Integration
Control the TPI-1005-A in real time using TPI-Link, the intuitive PC-based GUI that unlocks all of the generator’s advanced features. Includes lifetime upgrades and embedded firmware delivery.
Link Page:

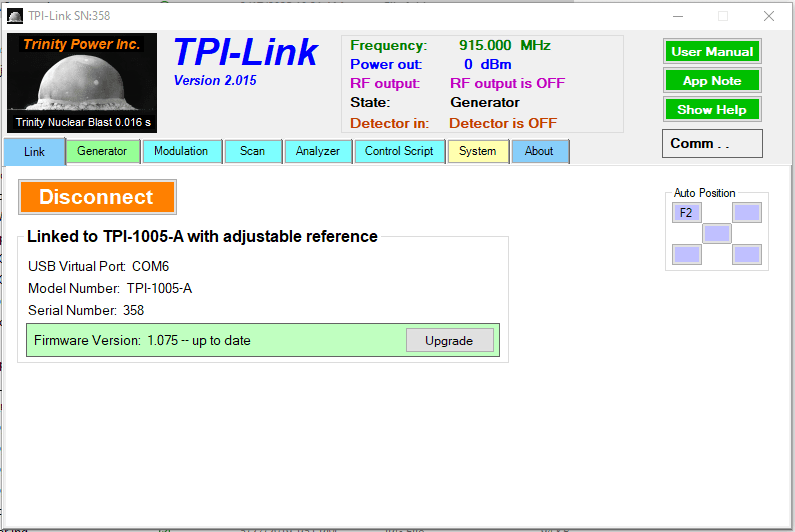

Linked Page:
Generator Tab:
Control output frequency, presets, power states, and reference settings with ease.
Modulation Tab:
Supports FM, OOK, Morse Code, and DTMF tone generation—perfect for testing communication protocols and transmitter behavior.
Ask for the DTMF app note: robert@rf-consultant.com
Internal Waveform Modulation Tab:
Squarewave modulation Tab:
Beacon Modulation Tab:

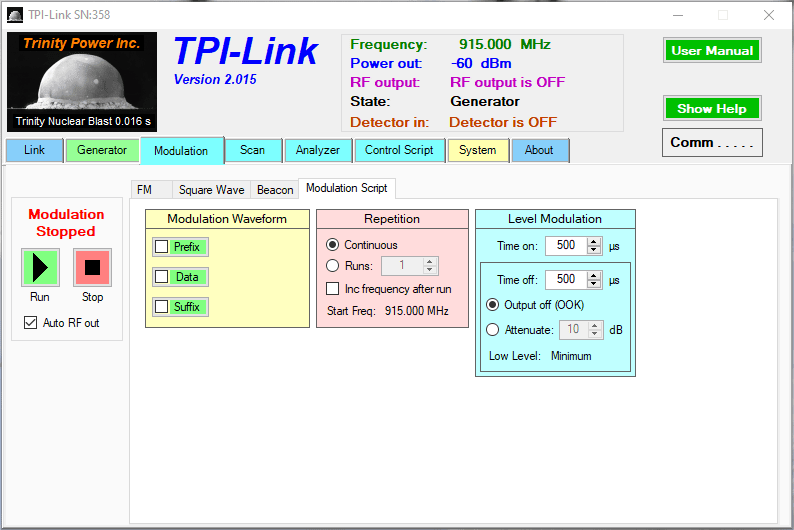

Modulation Script Tab:
Create and store complex test sequences directly on the unit. Run standalone with just a USB power source—no PC needed in the field.
Scan Tab:
Execute automated sweeps for signal verification and power output testing.
Analyzer Tab:
Measure power levels and return loss using the built-in RF detector and directional coupler support. Export plots in PNG, CSV, and other formats.
Analyzer Return Loss Tab:
Analyzer VSWR Tab:
Control Script Tab:
System Tab:
Configure auxiliary outputs, trigger events (14 supported), and customize onboard buttons for standalone use or test control.
Advanced Architecture & MCU Integration
An onboard Atmel microcontroller handles all internal device communication and stores the last-used configuration. The TPI-1005-A can operate independently from a PC, executing pre-configured routines with onboard power and control. Firmware updates are delivered through the TPI-Link interface for seamless improvements.
Included With Purchase
- TPI-1005-A Signal Generator
- USB cable
- Software + driver and all documentation located on a USB Drive (Windows 7/8/10/11 compatible)
- Free lifetime software and firmware upgrades
- Access to reference documentation, app notes, and Dropbox support hub
- Direct engineering support from the product creator
Ideal For:
- Land Mobile Radio (LMR) diagnostics & tuning
- Waveform and DTMF signal testing
- Production test setups
- Advanced RF engineering labs
TPI-1005-A Signal Generator
Todays Price is: $445.00 USD
Click here to download full documentation and product guide on Dropbox
